Farmlift

We designed and built the Farmlift telescopic loader range to meet the varied needs of today’s agriculture – from the small farmer to large operations. Whatever your needs, there is a Farmlift for you. Whatever model you choose, you know you can count on superior operating comfort, short loading times and quick vehicle response.

LIFT CAPACITY

3,300 - 4,200 kg

MAX REACH

6.1 - 9.1 m

ENGINE RATED / MAX POWER

121 - 146 HP

TRANSMISSION

6 x 3 Powershift (manual and auto shifting)

A MODEL TO LIFT EVERY LOAD

Case IH continues its tradition of meeting the diverse needs of farms with the new generation of Farmlift telescopic loaders. These machines, ranging from 3,300 to 4,200 kg lift capacities and reaching up to 9.1 m, embody the ruggedness, reliability, and comfort synonymous with Case IH. With enhanced styling, including new exterior design elements, and a complete new cab interior, they offer a fresh and modern look.

MODELS

The right Farmlift for every job

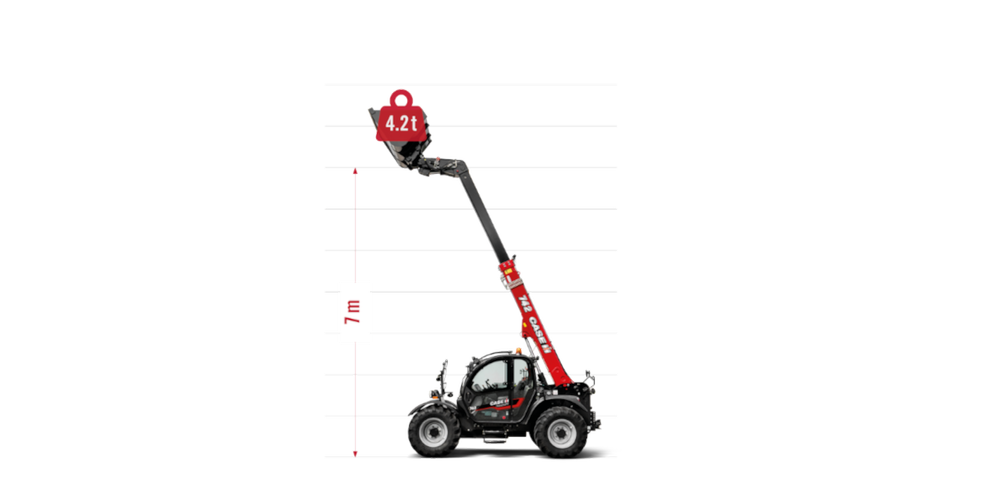

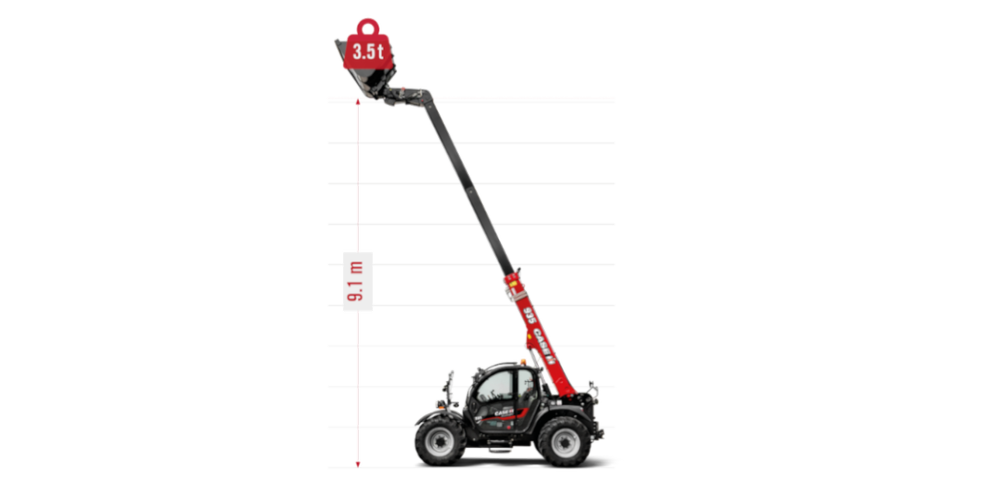

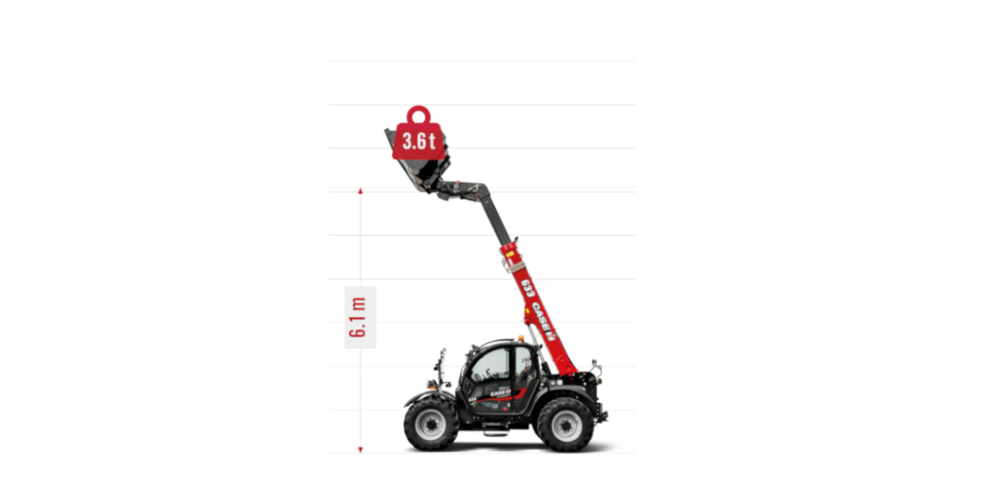

From the 633 with 6,1 m reach, to the work-hungry 4,200 kg max capacity of the 742 and the enormous 9.1 m reach of the 935, and plenty of models in between, there’s a machine to meet every need in the Farmlift range.

FARMLIFT 633 / 636

FARMLIFT 737 / 742

FARMLIFT 935

Explore the series

  • A cab that puts you first

    Upon entering the expansive and updated cab of our latest range, you’ll instantly appreciate the enhanced right-side visibility (+9 %), courtesy of a streamlined bonnet design, and a quieter environment. This comprehensive revamp offers unobstructed operator visibility, thanks also to the high-visibility roof,  and pairs it with our newly designed ergonomic controls and instruments for intuitive operation, such as the advanced 7 inch display.

  • The power you need

    Engineered for exceptional fuel efficiency and high-level performance, Case IH Farmlifts incorporate trusted components for reliable operation. All Farmlift models boast a 4.5 L NEF engine with HI-eSCR2 for Stage V compliance. Farmlift 636 and 742 deliver 146 hp at impressive fuel efficient 1,800 rpm. The 133 hp maximum power engine in the 633, 737 and 935 models ensure there is always sufficient power to delivering fast cycle times and full job versatility.

  • We shifted up a gear

    Every Farmlift model comes standard with an electronically controlled 6x3 full powershift transmission, promising outstanding performance. Discover the range: Farmlift 636 and 742 with 146 hp and 40 kph transmission. Farmlift 633 and 737 offer 133hp and optional 40kph whilst the 935 is 133hp and 35kph. Find your ideal choice!

  • The best boom in the business

    You can trust in a sturdy telescopic boom that offers exceptional torsion resistance and payload capacity. Using electronic sensors, this unique feature accomplishes automatic attachment levelling, bypassing the need for a telehandler`s compensation cylinder and benefiting of full bucket capacity with no losses, great attachment levelling accuracy, less operator effort and reduced maintenance time and cost.

  • Full hydraulic power

    The Farmlift's hydraulic system offers electro-hydraulic, proportional functions through a CCLS load-sensing system, ensuring precise control and fast response. It also includes smart features such as bucket return, adjustable boom reactivity, and shaking function to boost productivity thanks to shorter cycle times. All hydraulic features are electro-proportionally controlled by the integrated multifunction electronic joystick, located on the end of the seat armrest, offering ergonomic excellence.

  • Time-efficient. Cost-efficient

    Daily maintenance is easily managed thanks to the wide opening one piece bonnet and side panels. And with 1000-hour service intervals, Farmlift telehandlers require the minimum of regular scheduled care.

  • Solutions for your farming

    Our professional dealer network backed up by local Case IH teams, industry-leading Case IH support tools, modern training methods, best-in-class replacement parts, support and logistics performance. All you need for an excellent all-encompassing after-sales service to keep you farming.

  • AFS Connect Telematics provides easy access to your machine data and fleet and real-time notifications allow you to make proactive business decisions.
    AFS Connect Telematics can be supplied from factory.
