L10 Series Loaders

Faster Cycle Times for More Productive Work Days

L10 series loaders have the features to make livestock feeding, material handling and other loader work more efficient. Faster cycle times, due to faster hydraulics or the ability to see better and move more nimbly, help you get more work done, quicker.

Rugged Durability Meets Excellent Visibility
Developed with you in mind, L10 series loaders feature better visibility, faster operation, improved lift heights and working angles - all on a stronger, lighter framework.
- Rugged Durability: A chamfered and embossed arm design increases strength. Cast and forged components add even more strength at critical stress points, ensuring lasting reliability and a lower cost of ownership.
- Better Visibility: A curved arm design, along with a low knee and cross-tube positioning, provide a 30 percent increase in field of vision when the loader is in transport position. Smart hose routing and protective covers help keep hydraulic lines out of the way and from interfering with sight lines.
Quick, Tool-Free Connections
No loader is easier to mount and dismount than an L10 series loader — it can be mounted or removed from the tractor in a minute or less with no tools required, or loose parts to worry about.
- Clear Pin Engagement Confirmation: Get clear visual confirmation of pin engagement from the tractor seat via a green marker on the inside of the bearing box
- Automatic Attachment Locking: Make quick work of attachment changeout thanks to safe, ergonomic and automatic attachment locking
- Quick Release Hydraulic Couplers: Our best-in-class hydraulic quick release couplers simplify hookup of hydraulic-operated attachments — even under pressure
Reduce Operating Costs with Optimized Hydraulics
When you have hundreds of bales to move, saving a few seconds per lift adds up. L10 loaders feature larger ports on the hydraulic cylinders to help optimize oil flow to better match the increased hydraulic capacities of today’s tractors. More-efficient oil flow means the hydraulic system performs faster while generating less heat and using less fuel, resulting in lower operating costs.
Enjoy a Smoother Ride
Long days on the tractor seem only to get longer when your loader dishes out a beating. Case IH SoftRide loader suspension smooths the bumps of heavy loader work. Accumulators on L10 series loaders provide rapid oil movement and rapid response to any bumps in the road or across the field. This dampening, which can be electrically switched on or off, helps reduce operator fatigue while preserving the loader’s longevity.

L103 For Farmall Medium Utility C

Designed for the Farmall^® medium utility C series tractors

Max Lift Capacity: up to 3,241 lb. (1 470 kg)
Max Height: up to 129 in. (3 270 mm)
Boom Breakout Force: up to 3,417 lb. (1 550 kg)

Utility Farmall 120U model hero duplicate

L103 for Farmall Medium Utility U

Designed for Farmall^® medium utility u series

Max Lift Capacity: up to 3,461 lb. (1570 kg)
Max Height: up to 132 in. (3350 mm)
Boom Breakout Force: up to 3,660 lb. (1660 kg)

L103 for Farmall 100A Series

Designed for Farmall^® large utility 100A series tractors

Max Lift Capacity: up to 2,094 lb. (950 kg)
Max Height: up to 133 in. (3 370 mm)
Boom Breakout Force: up to 3,020 in. (1 370 kg)

L103 for Maxxum series

Designed for Maxxum^® series tractors with 2WD front axles

Max Lift Capacity: up to 2,381 lb. (1 080 kg)
Max Height: up to 131 in. (3 330 mm)
Boom Breakout Force: up to 3,439 in. (1 560 kg)

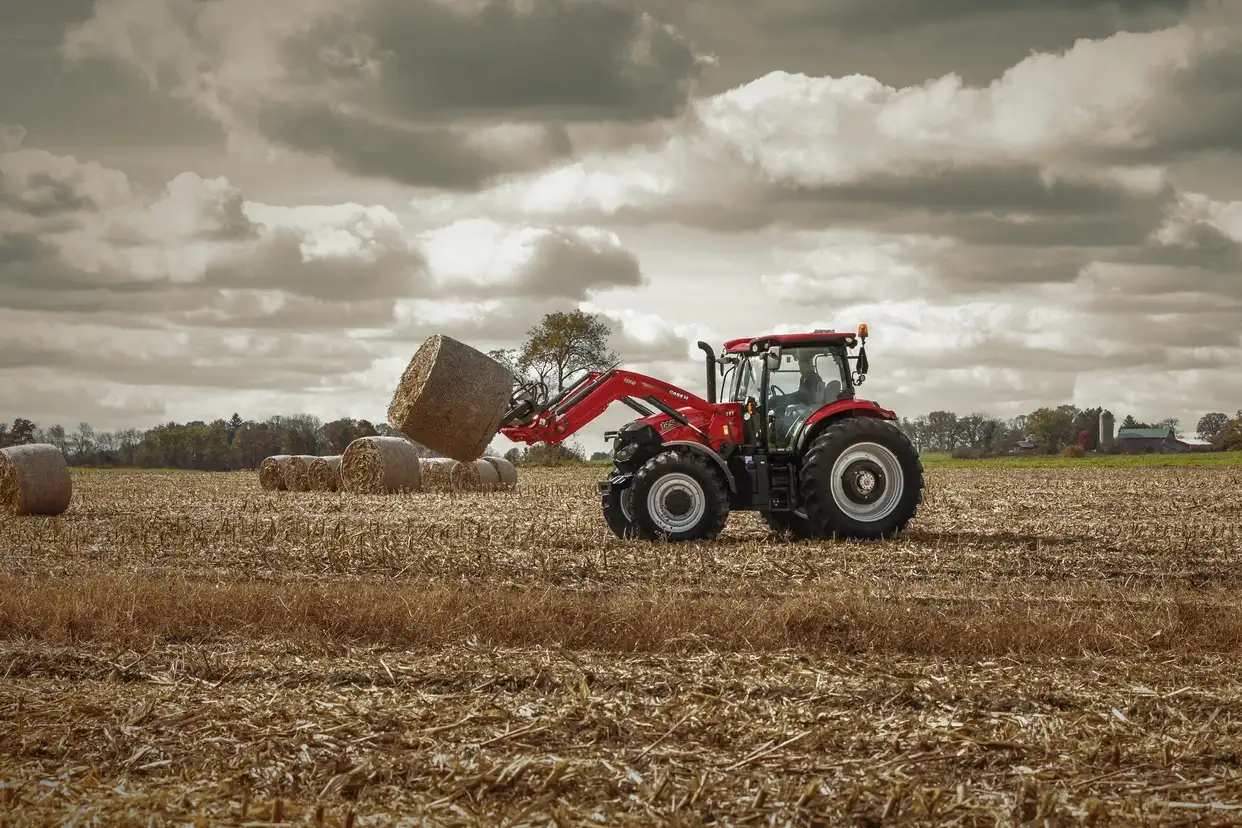

Vestrum 130 tractor with L113 loader and round bale

L103 for Vestrum series

Designed for Vestrum^® series tractors

Max Lift Capacity: up to 3,505 lb. (1 590 kg)
Max Height: up to 143 in. (3 640 mm)
Boom Breakout Force: up to 3,682 lb. (1 670 kg)

L104

Designed for Farmall^® large utility 100A series tractors

Max Lift Capacity: up to 3,814 lb. (1 730 kg)
Max Height: up to 139 in. (3 530 mm)
Boom Breakout Force: up to 3,968 lb. (1 800 kg)

L105

Designed for Maxxum^® series tractors.

Max Lift Capacity: up to 5,203 lb. (2 360 kg)
Max Height: up to 150 in. (3 810 mm)
Boom Breakout Force: up to 5,975 lb. (2 710 kg)

L106

Designed for Puma^® 150, 165 NS 175 tractors.

Max Lift Capacity: up to 5,578 lb. (2 530 kg)
Max Height: up to 154 in. (3 920 mm)
Boom Breakout Force: up to 6,415 lb. (2,910 kg)

L107

Designed for Puma^® 185- 260 tractors.

Max Lift Capacity: up to 5,622 lb. (2 550 kg)
Max Height: up to 168 in. (4 270 mm)
Boom Breakout Force: up to 6,768 lb. (3 070 kg)

L108

Designed for Case IH Magnum^™ 180 to 240 series tractors

Max Lift Capacity: 6,151 lb. (2 790 kg)
Max Height: 162 in. (4 110 mm)
Boom Breakout Force: 8,620 lb. (3 910 kg)

Compatibility

Compatible Tractors

L103

Compatible with:

Farmall Medium Utility C: 90C, 100C, 110C, 120C
Farmall Medium Utility U: 110U, 120U
Farmall Large Utility 100A: 110A, 120A, 130A, 140A
Vestrum: 100, 130
Maxxum: 115, 125, 135, 145, 150

L104

Compatible with:

Farmall Large Utility 100A: 110A, 120A, 130A, 140A

L105

Compatible with:

Maxxum: 115, 125, 135, 145, 150

L106

Compatible with:

Puma: 150, 165, 175

L107

Compatible with:

Puma: 185, 200, 220, 240

L108

Compatible with:

Magnum: 180, 200, 220, 240
