1,742-3,175 lb. Lift Capacity

L505 Series Loaders

Designed for light utility (40-100 HP) tractors, the L505 series fit Farmall® Small and Medium Utility A and Farmall® Small and Medium Utility C series tractors.

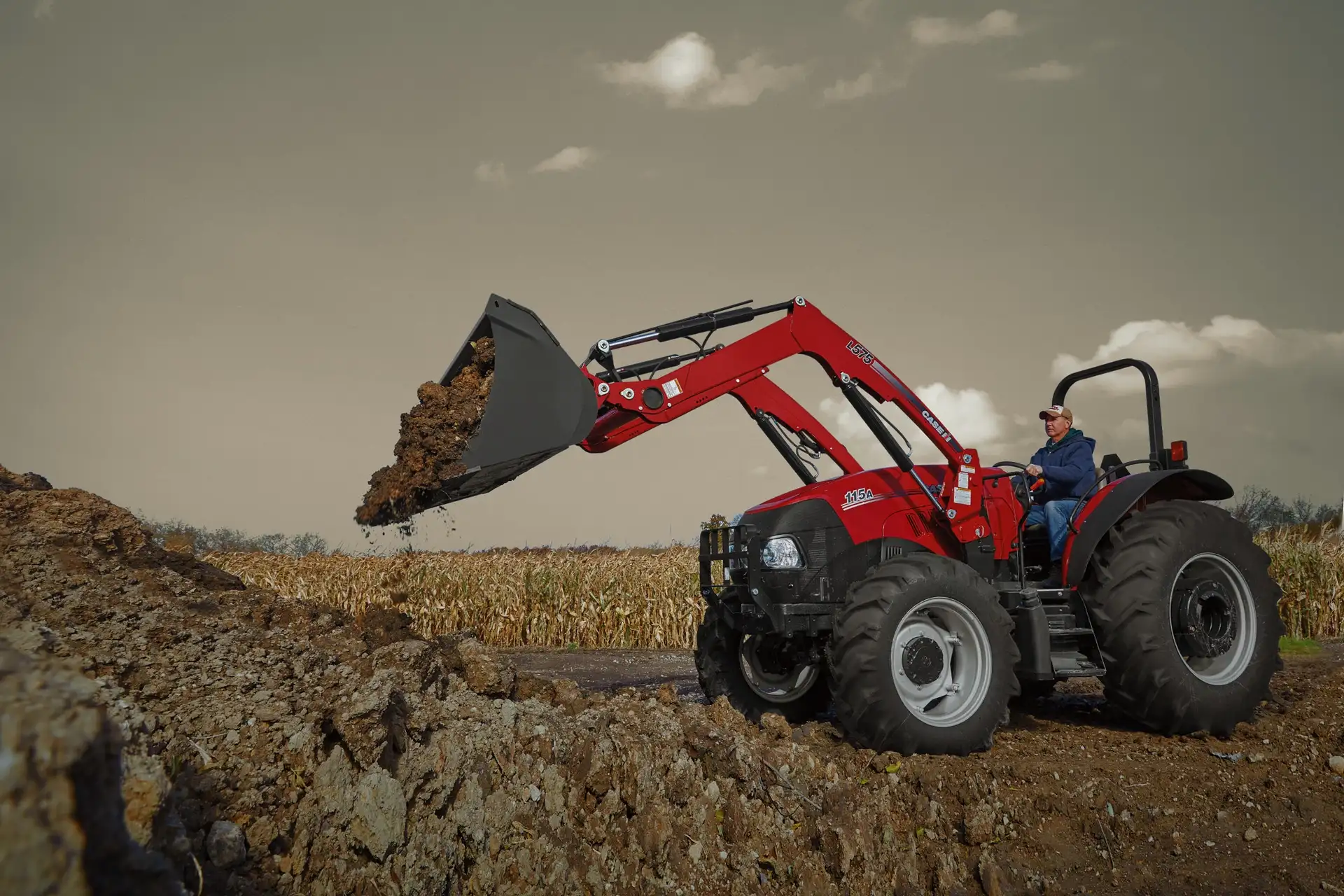

A Case IH L505 series loader
Number of Models
4
Maximum Lift Capacity
1,742 - 3,175 lb.
Maximum Height
102 to 134.5 in.
Breakout Force
2,998 - 3,527 lb.

L505 Series Loaders

Transform Your Tractor for More Productive Work Days

Key features include:

  • Double C channel loader arm for structural strength and streamlined appearance
  • Reinforcements between the cross tube and loader arm for improved visibility and longer service life
  • Integrated park stands for quick connect and disconnect
  • Pin lock system for lubrication, strength in wear areas and protection from contaminants.
  • Sub frame strength with large bearing surface for longer loader life
  • Quick Connect System for improved efficiency
  • Compact bucket level indicator for ease of monitoring bucket position and reduced chance of damage
Compatibility

Compatible Tractors
