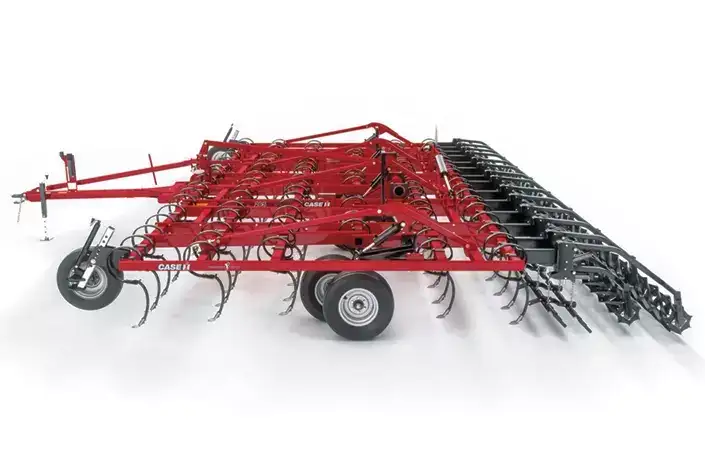

Vibra-Tine 265 S-Tine Field Cultivator

Productive and agronomically designed field cultivator equipped with vibrating S-tine technology effectively works high-clay and timber soils, creating a better seedbed.

Build & PriceView Offer

Frame Type

Single-fold, double-fold

Working Width

26.5 – 48.5 ft (8.0 – 14.8 m)

Number of S-tines

78 – 144

S-tine pattern

4-in spacing

S-Tine Design

Vibra-Tine 265 S-tines are strong enough to handle tough clay soils in first-pass tillage and agronomically designed to help create an ideal seedbed. Stay productive through a variety of conditions, from the hardest clay soil to the lightest sandy loam.

S-Tine Advantages

Proven Technology

Vibrating technology enables S-tines to break through heavy soil to create a better seedbed
Six ranks of S-tines with effective 4-inch spacing provides optimal clod sizing and allow for maximum residue flow
Large dimensions of the S-tine coils ensure powerful forward, backward and sideways motion of the tine

Built to Last

Built with high-quality alloy steel to ensure longevity and perform in a variety of soils
Shot-peened to remove any potential fatigue cracks from the shaping process, increasing wear life
Convex spring steel shank provides added strength

Shank Options to Fit Your Fields

Choose the S-tine shank option that meets your needs:

Standard one-piece coil (110 lb.) provides optimal vibration and holding force in most soil conditions
Heavy-duty two-piece coil (160 lb.) provides the highest holding power in the industry and additional ground clearance

Work soils from a shallow 0.5 inch (1.27 cm) up to 4 inches (10.16 cm) to deliver your ideal field finish

Frame Construction

Our customers needed a productive S-tine design that would stand up to their unique soils and tough conditions. The Vibra-Tine 265 S-tine field cultivator is built rugged to deliver reliable performance pass after pass, season after season.

Proven tube-through design with 4-inch square tubing walls are high-strength for an open, yet durable frame

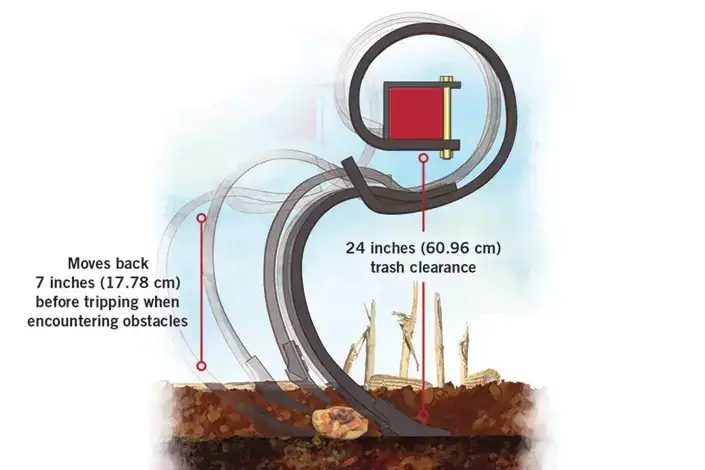

High 24-inch (60.96 cm) frame clearance allows for maximum residue flow and minimizes plugging

Built with durable components to extend wear life and reduce maintenance, including:

Welded cylinders
Greaseless bushings in all rockshaft pivots
Heavy-duty bearings on Crumbler® rollers

Select the Best Finishing Tool for Your Soil Type

Select the finishing tool option that best fits your soil type and farming practices. Our harrow options with Advanced Conditioning System (ACS) are designed to maximize seed-to-soil contact while providing optimal leveling and clod sizing. Choose from:

2-Bar Spike ACS Harrow with Dual Flat-Bar Crumbler®(shown): Paired with the independent-arm, dual flat-bar Crumbler, this option is designed to help effectively break up clods and level the soil for a smooth finish, matching the contour of the ground for ultimate seedbed leveling

3-Bar Spike ACS Harrow with Single Flat-Bar Crumbler®: Paired with the flat-bar spiral Advanced Conditioning System (ACS), this option with three bars is ideal for tough soils that require additional leveling. The flat-bar ACS harrow adds clod-busing power with excellent durability
