Accuracy levels

Whether your operation requires sub-inch accuracy reliable year-to-year repeatability, or simply fast, dependable guidance and data gathering, Case IH Advanced Farming Systems lets you customize your precision farming technology precisely to your needs and objectives.

FIND A DEALER

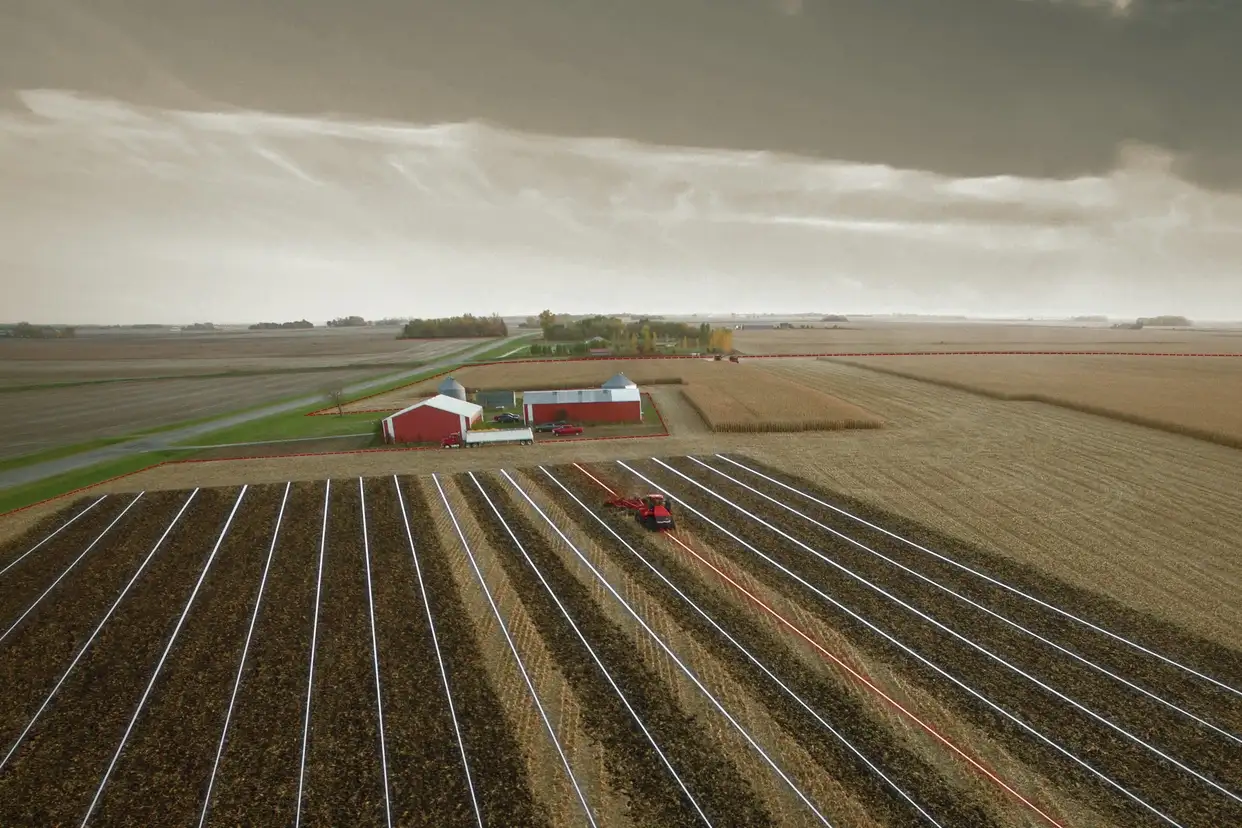

Tractor in a field
Accuracy levels

    FIND A DEALER

    Ultimate Precision with AFS RTK+

    From managing inputs during field preparation through harvest, Case IH offers a number of corrections with four types of delivery so you can choose what is best for your operation. RTK+ (Real Time Kinematic) is the top-end technology that ensures a fast, dependable signal and maximum accuracy in all conditions, regardless of field location. For the ultimate precision an additional wireless correction signal from a mobile communications network, with the modem fixed to the tractor and a range of up to 30 km, provides the technology you need.



    Explore the Accuracy Levels

    • Pass to pass: accuracy achieved over 15 minutes window between passes
      Repeatable: accuracy achieved after 1 week, month or year

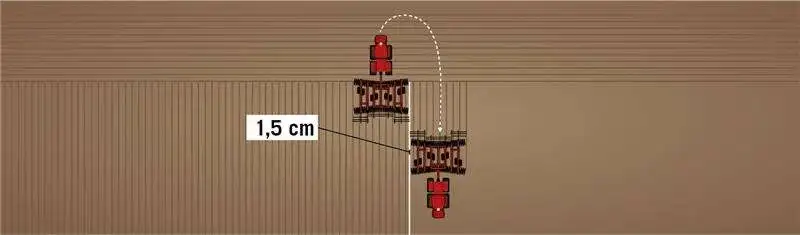

      RTK+

      Accuracy

      • Pass to pass: 1,5 cm
      • Repeatable: 1,5 cm
      • Convergence: < 1 minute

      Complementary features

      • Mobile App
      • Dealer support
      • Internet access on your display

      Constellation of GNSS / Satellites

      • GPS
      • GLONASS
      • GALILEO
      • BEIDOU

      Receiver compatibility

      All GNSS receivers

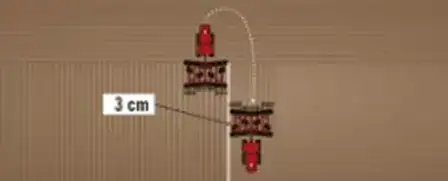

    • AFS3

      Accuracy

      • Pass to pass: 3 cm
      • Repeatable: 5 cm
      • Convergence: < 18 minute

      Constellation of GNSS / Satellites

      • GPS
      • GLONASS
      • GALILEO
      • BEIDOU

      Receiver compatibility
      Only AFS Vector Pro

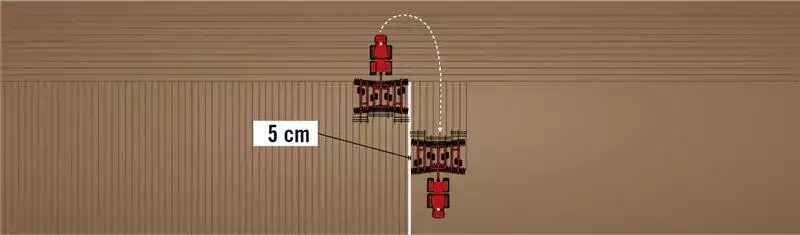

    • AFS2

      Accuracy

      • Pass to pass: 5 cm
      • Repeatable: 5 cm
      • Convergence: < 30 minute

      Constellation of GNSS / Satellites

      • GPS
      • GLONASS

      Receiver compatibility

      Only AFS Vector Pro

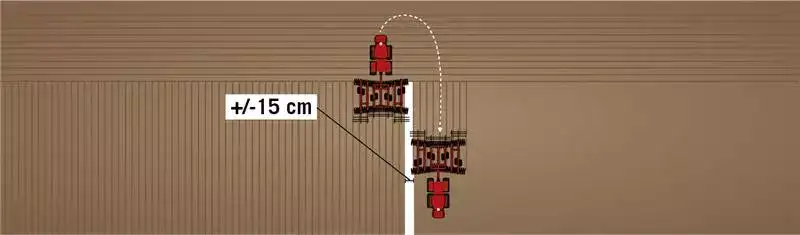

    • AFS1

      Accuracy

      • Pass to pass: 15 cm
      • Repeatable: 50 cm
      • Convergence: < 5 minute

      Constellation of GNSS / Satellites

      • GPS
      • GLONASS

      Receiver compatibility

      Only AFS Vector Pro

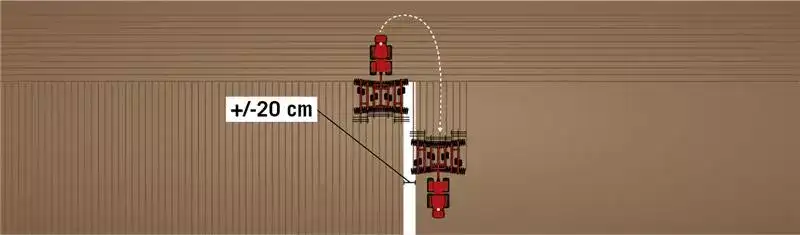

    • EGNOS

      Accuracy

      • Pass to pass: 20 cm
      • Repeatable: 1 m
      • Convergence: < 1 minute

      Constellation of GNSS / Satellites

      • GPS

      Receiver compatibility

      All GNSS receivers
