Operator’s seat has an air suspension system and is equipped with an “operator presence system”. This safety feature shuts off the row units after the operator leaves the seat of a stationary machine and protects the operator against possible risk of accident.
Maximise picking efficiency

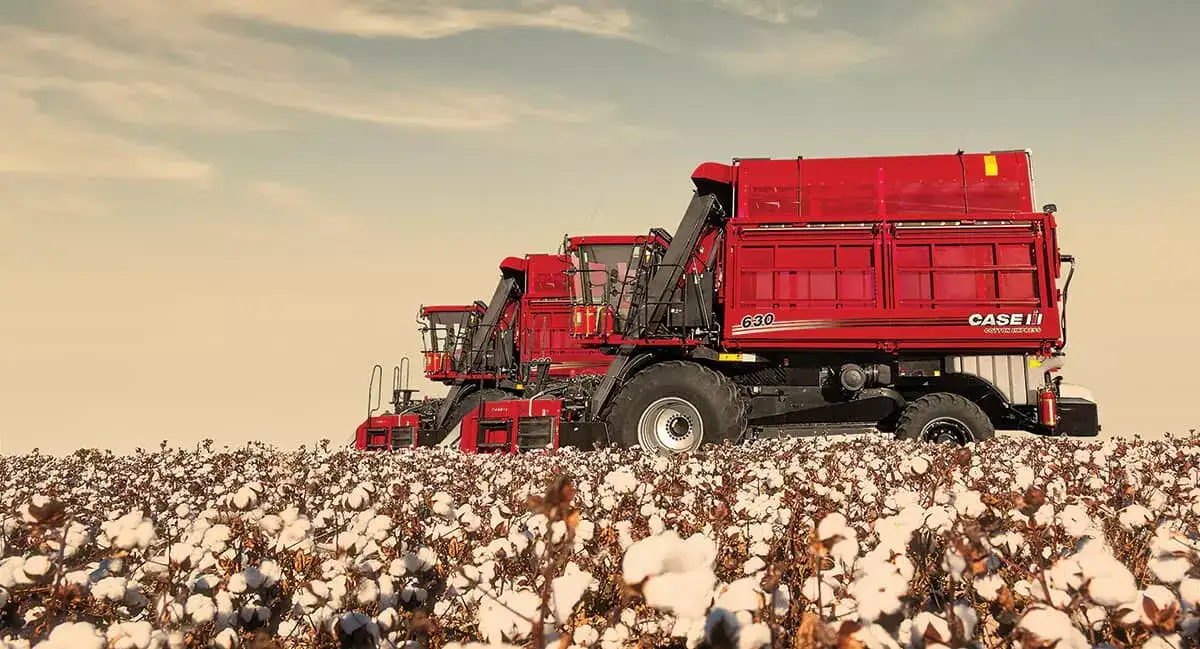

Enjoy maximum return of your investment with industry-leading dual side picking system. Just one pass, and all the cotton on your fields will be harvest until the last flock. Case IH Cotton Express cotton pickers have the highest capacity baskets in the market.
Explore the series
All controls can be found on the console that is located on the right of the operator’s seat. This console is integrated to and moves together with the seat. Multi-function control lever, three-level hand throttle, controls regarding moistening, compaction and unloading and all other controls are located on this console. Hydraulic locking switch on the control console locks the hydraulic systems of the row units and basket controls when the cotton picker is in the road condition. Therefore, accidental move of row units and basket while the picker is in the road condition is prevented.
Thanks to the patented dual side picking system, cotton rows are taken between two picking drums and the cotton is picked on both sides, left and right. Patented spindledrum design allows a more thorough plant penetration and complete coverage of the plant on left and right sides. With this feature, a highly efficient picking is carried out without leaving any cotton on the plant and requiring a second pass, even on farms with high yield.
- Thanks to the automatic height sensing system used in the Case IH Cotton Express, row units follow the surface of the field at the adjusted height and successfully picks the cotton at the lowest parts of the plant. When there is an obstacle, related units may be lifted temporarily and after the obstacle is negotiated, these go back to their row height position. Row unit cabs of fully-welded manufacturing and picking drums that are driven completely by gears are reliable, long-lasting and require minimum maintenance.

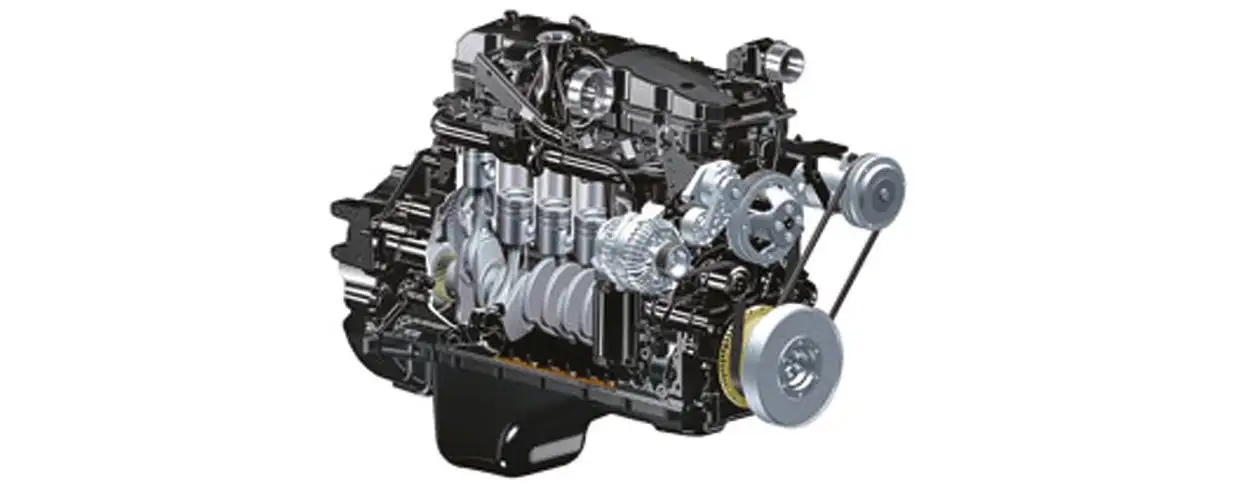

Case IH Cotton Express 420 is equipped with a 6-cylinder, 8.3L Cummins engine. Featuring a common-rail fuel injection system and a Turbo- Aftercooler, this engine produces 275 hp power under 2200 rpm. It provides low fuel consumption and the highest performance under the harshest field conditions. Case IH Cotton Express 630 cotton pickers are powered by a 8.7 litre, 6-cylinder turbocharged FPT engine producing an impressive power output of 373 hp. To minimise fuel stops, models are equipped with a 568 l on Cotton Express 420 and 757 l on Cotton Express 630 fuel tank which will easily meet the day’s operating requirements without needing to be refilled.
Optional automatic steering system adds up to less fatigue for the driver during long harvesting periods and maximises machine harvesting efficiency.
